General

Autodesk University 2023 Design Challenge

AU23 Fusion Design Challenge

If you were at Autodesk University 2023 in the Venetian Conference Center, Las Vegas you may have seen some users on the expo floor furriously modeling at a stand of laptops. This was the Design Challenge where each of the three days of the conference a new design was posted. Users could use a laptop, and under proctored conditions, model the designs and post the time to completion to a leader board.

Here are the three designs for you to try yourself.

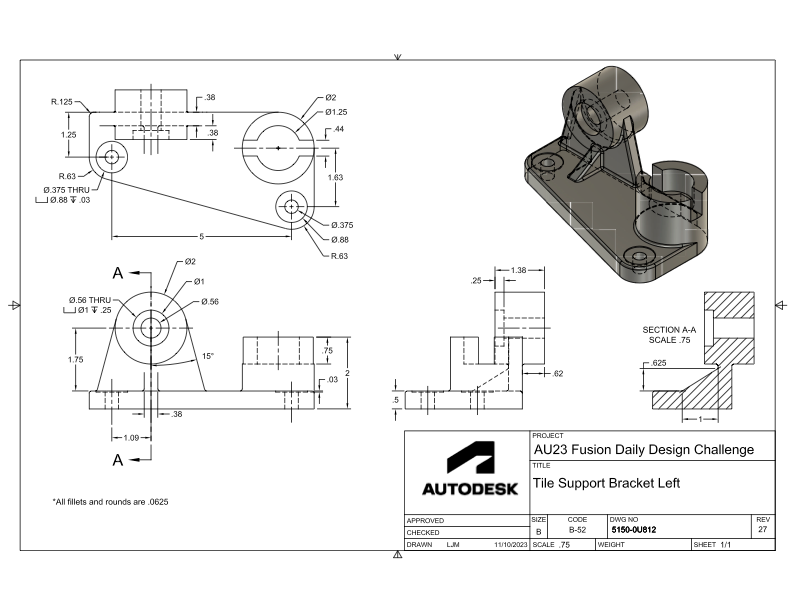

Day 1:

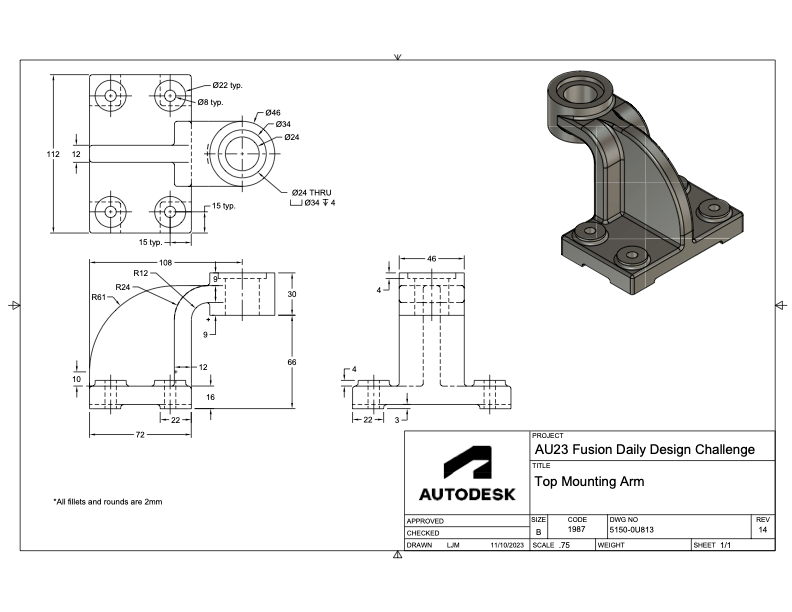

Day 2:

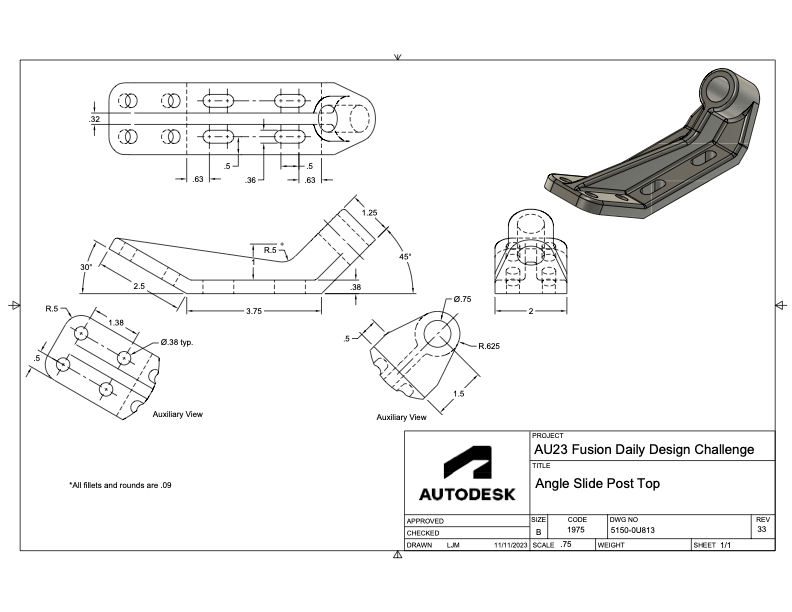

Day 3:
